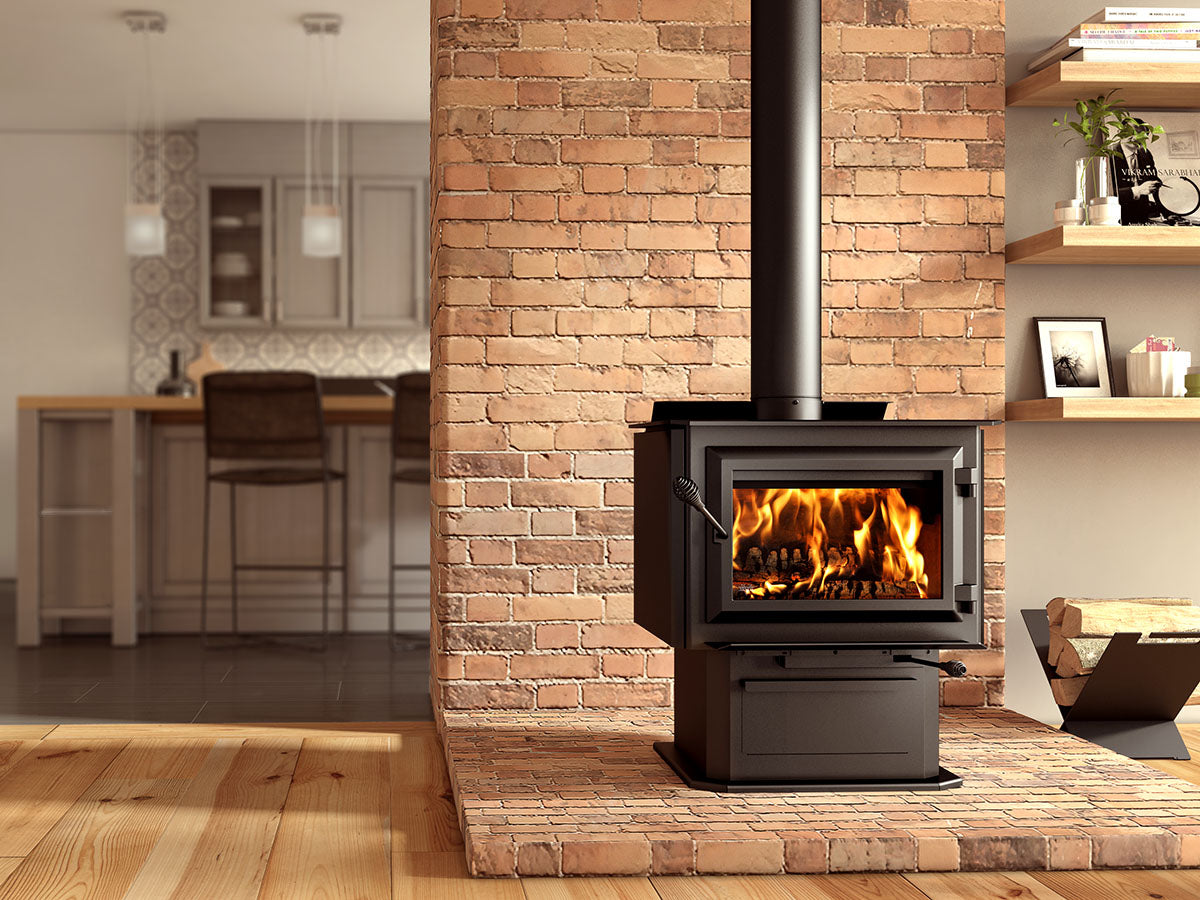

Ventis HES240
The Ventis HES240 large sized single cast iron door wood burning stove on pedestal is recommended for heating larger spaces from 500 – 2,100 sq.ft. The firebox is lined with refractory bricks for better heat distribution with purchase of a fresh air intake allows for mobile home & alcove installation. The HES240 offers non-catalytic combustion technology and top heat deflector and side shields. This unit has a 8 hr Maximum Burn Time, can hold 20″ logs and is EPA 2020 approved.
Weight 375 lbs
26.75 x 26.75 x 32.25in.
Description
- Approved for an alcove installation
- Glass air-wash system
- Firebox lined with refractory bricks for better heat distribution
- Baffle type : High quality vermiculite
- Flue outlet diameter : 6″
- Optimum efficiency : 77 %
- Average particulate emissions rate : 1.54 g/h
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Approved for a mobile home installation : Yes, with fresh air intake
- Recommended heating area-ft² : 500 – 2,100
- Stainless-steel secondary-air system improving gas combustion
- Combustion Technology : Non-catalytic
- Maximum burn time : 8 h
- Chimney diameter : 6″
- Flue outlet diameter : 6″
- Firebox – dimension (Height) : 11 7/8″
- Firebox – dimension (Width) : 21″
- Firebox – dimension (Depth) : 17 1/8″
- Overall dimension (Height) : 32 1/8″
- Overall dimension (Width) : 26 3/4″
- Overall dimension (Depth) : 26 3/4″
- Door opening – dimension (Height) : 9″
- Door opening – dimension (Width) : 17 1/2″
- Average particulate emissions rate : 1.54 g/h
- Steel thickness – body : 3/16″
- Steel thickness – top : 5/16″
- Warranty : Limited lifetime
- Minimum chimney height (feet) : 12′
- Maximum log length : 20″
- Log positioning : Over width
- Maximum heat output (dry cordwood) : 75,000 BTU/h (22 kW)
- Overall heat output rate (max.) : 28,600 BTU/h (8.38 kW)
- Overall heat output rate < : 14,800 BTU/h (4.34 kW)
- Average overall efficiency (dry cordwood) : 69 %
- Average overall efficiency (EPA cribs/Douglas fir) : N.A.
- Average overall efficiency-dry cordwood : 74 %
- Average overall efficiency-EPA cribs/Douglas fir : N.A.
- Glass surface – dimensions (Width X Height) : 16 7/8″ X 10 1/4″
- Average CO : 89.4 g/h
- Combustion technology : Non-catalytic
- Tested and listed as per applicable standards : By an accredited laboratory (CAN/USA)
- Type of chimney : CAN/ULC S629, UL 103 HT (2100 °F)
- Fuel type : Dry cordwood
- Door type : Single, glass with cast iron frame
- Glass type : Ceramic glass
- Overall firebox volume-ft³ : 2.4
- Canadian Standard (emissions) : CSA B415.1-10
- USA standard (emissions) : EPA / ASTM WK47329
- Canadian standard (safety) : ULC-S627
- USA standard (safety) : UL 1482, UL 737
- Glass air-wash system : Yes
- Firebox lined with refractory bricks for better heat distribution : Yes
- High-efficiency certified appliance : Yes, EPA 2020 approved
- Stainless-steel secondary-air system improving gas combustion : Yes
- EPA loading volume-ft³ : 2.02
- Blower is optional
